Spiralite 1000

RUBBER STANDARD SUCTION HOSE

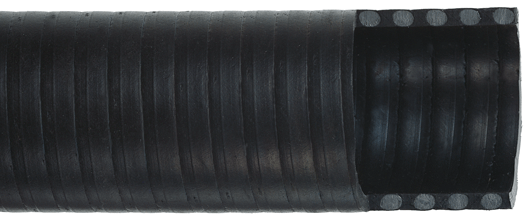

HOSEAPPEARANCE/CONSTRUCTION:

Rubber tube with black PVC helix. Smooth cover and interior.

BENEFITS:

-Good blend of durability, handling weight and flexibilty.

-Static-dissipating tube.

GENERAL APPLICATIONS:

-Material Handling.

-Water/light chemical suction and transfer.

-Transferring moderate abrasives.

TEMPERATURE RANGE:

-30F TO +140F

STANDARD LENGTHS:

1-1/2" thru 6" 100ft

1000-00

Nomial size
inch
1-1/2"
2"
2-1/2"
3"
4"
6"
Appox O.D.
inch
1.92
2.43
2.92
3.53
4.65
6.76
W.P. at 149

psi
70
60
45
45
45
30
Vacuum Rating
in/HG
28
28
28
28
28
28
Recom. Min. Bend Radius at 68 F
inch
5
6
8
9
12
20
Approx. B.P. at 68 F
psi
210
180
135
135
135
90
Approx. Wt.
lbs./ft.
.60
.80
1.07
1.45
2.30
3.98
