Spiralite 113

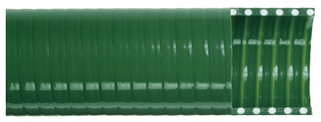

HOSE APPEARANCE/CONSTRUCTION:

"SPECIAL" GREEN PVC TUBE WITH WHITE PVC HELIX. SMOOTH WALL AND INTERIOR

BENEFITS:

-Excellent blend of economy and quality

-Smooth interior prevents material blockage

GENERAL APPLICATIONS:

-General suction for water and light chemical solutions

TEMPERATURE RANGE:

-10F TO +130F

STANDARD LENGTHS:

3/4" thru 6" 100 feet

8" and above 20'25'30'

110-00

Nomial size
 inch
3/4"
1"
 1-1/4" 1-1/2" 2"
2-1/2"
 3" 4" 5" 6" 8"
Appox O.D.
inch
1.01
1.25
1.51
1.81
2.34
2.88
3.42
4.49
5.58
6.80
8.94
recommended W.P. at 68 F
psi
100
90
70
70
60
60
50
45
45
45
40
Vacuum Rating
in/HG
28
28
28
28
28
28
28
28
28
28
28
Recom. Min. Bend Radius at 68 F
inch
2
3
4
5
6
8
9
13
21
24
40
Approx.B.P. at 68 F
psi
300
270
210
210
180
180
150
135
135
135
120
Approx. Wt.
lbs./ft.
.20
.26
.32
.15
.63
.90
1.16
1.82
3.00
4.56
7.05
