Spiralite 1200

CORRUGATED RUBBER DUCT HOSE

APPEARANCE/CONSTRUCTION:

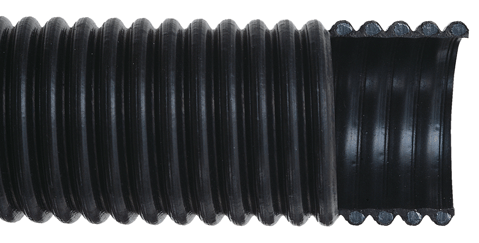

Rubber tube with back PVC helix. Corrugated cover, smooth interior.

BENEFITS:

-Good blend of durability, handling weight and flexibilty.

-Static-dissipating tube.

GENERAL APPLICATIONS:

-Material Handling.

-Water/light chemical suction and transfer.

-Transferring moderate abrasives.

TEMPERATURE RANGE:

-30F TO +140F

STANDARD LENGTHS:

1-1/2" thru 6" 100ft

8" 50ft

1200-00

Nomial size
inch
2
2-1/2
3
4
5
6
8
Appox O.D.
inch
2.37
2.91
3.48
4.55
5.65
6.78
8.87
W.P. at 149

psi
35
30
30
25
25
25
20
Vacuum Rating
in/HG
28
28
28
25
25
25
25
Recom. Min. Bend Radius at 68 F
inch
4
5
6
9
10
12
17
Approx. B.P. at 68 F
psi
105
90
90
75
75
75
60
Approx. Wt.
lbs./ft.
.49
.66
.91
1.36
2.08
2.86
4.23
