Spiralite 145

PVC ALL-CLEAR FDA CORRUGATED SUCTION HOSE

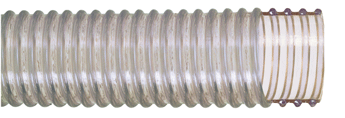

HOSE APPEARANCE/CONSTRUCTION:

Clear PVC with white helix. Corrugated cover and smooth interior.

BENEFITS:

-Non-toxic formula conforms with FDA requirements.

-Smooth interior prevents material blockage

-Clear construction allows easy inspection of material flow.

GENERAL APPLICATIONS:

-Food processing/handling

-USDA meat and poultry plants

TEMPERATURE RANGE:

-10F TO +130F

STANDARD LENGTHS:

1" thru 4" 100 ft.

145-00

Nomial size
 inch
1"
1-1/4'
 1-1/2" 45mm 2"
57mm
 2-1/2" 3" 4"
Appox O.D.
inch
1.26
1.61
1.82
2.13
2.44
2.67
2.98
3.54
4.65
recommended W.P. at 68 F
psi
35
50
50
40
40
40
40
35
35
Vacuum Rating
in/HG
28
28
28
28
28
28
28
28
28
Recom. Min. Bend Radius at 68 F
inch
2
3
3
4
4
4
5
6
8
Approx.B.P. at 68 F
psi
105
150
150
120
120
120
120
105
105
Approx. Wt.
lbs./ft.
.14
.31

.37
.51
.57
.64
.77
1.04
1.65
