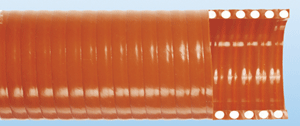

Spiralite 150

PVC OIL RESISTANT STANDARD SUCTION HOSE

HOSEAPPEARANCE/CONSTRUCTION:

Orange PVC with white helix. Smooth wall, smooth interior

BENEFITS:

-Specially compounded from oil-resistant PVC

-Excellent alternative to more expensive rubber hose in certain applications

GENERAL APPLICATIONS:

-General suction of light lois and animal fats

-Good for use in enviornments where hose may be exposed to oils.

-Vapor recovery

TEMPERATURE RANGE:

-10F TO +130F

STANDARD LENGTHS:

1" thru 6" 100 feet



150-00

Nomial size
inch
1"
1-1/4"
1-1/2"
2"
2-1/2"
3"
4"
5"
6"
Appox O.D.
inch
1.29
1.57
1.87
2.44
2.78
3.54
4.65
5.65
6.80
W.P. at 149

psi
100
90
90
58
78
78
70
55
50
Vacuum Rating
in/HG
28
28
28
28
28
28
28
28
28
Recom. Min. Bend Radius at 68 F
inch
3
4
5
7
10
12
16
21
24
Approx. Wt.
lbs./ft.
.31
.43
.57
.87
1.19
1.62
2.56
3.15
4.64
