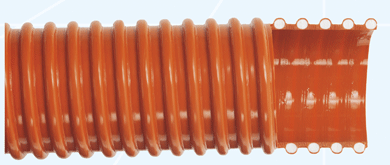

Spiralite 160

PVC OIL RESISTANT CORRUGATED SUCTION HOSE

HOSEAPPEARANCE/CONSTRUCTION:

Orange PVC with white helix. Corrugated wall, smooth interior

BENEFITS:

-Specially compounded from oil-resistant PVC

-Excellent alternative to more expensive rubber hose in certain applications

GENERAL APPLICATIONS:

-General suction of light lois and animal fats

-Good for use in enviornments where hose may be exposed to oils.

-Vapor recovery

TEMPERATURE RANGE:

-10F TO +130F

STANDARD LENGTHS:

1-1/2" thru 4" 100 feet



160-00

Nomial size
 inch 1-1/2" 2" 2-1/2" 3" 4"
Appox O.D.
inch
1.86
2.44
2.98
3.54
4.65
W.P. at 149

psi
50
40
35
35
35
Vacuum Rating
in/HG
28
28
28
28
28
Recom. Min. Bend Radius at 68 F
inch
3
4
5
6
8
Approx. Wt.
lbs./ft.
.39
.60
.81
1.10
1.73
