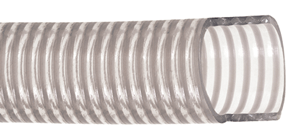

Spiralite 175

PVC ALL-CLEAR FDA SUCTION HOSE

HOSEAPPEARANCE/CONSTRUCTION:

Clear PVC wall and helix. Smooth wall and interior

BENEFITS:

-Non-toxic formula conforms with FDA requirements

-Smooth interior prevents material blockage

-Conforms to USDA 3A standards for the milk hauling.

-USDA approved for meat and poulty plants.

GENERAL APPLICATIONS:

-Food processing/handling

-Service in daries and wineries

TEMPERATURE RANGE:

-10F TO +130F

STANDARD LENGTHS:

3/4" thru 6" 100 feet

8" and above 20'25'30'

175-00

Nomial size
 inch 3/4"
1"
 1-1/4" 1-1/2" 2" 2-1/2" 3" 4"
Appox O.D.
inch
 1.02
1.29
1.56
1.84
2.39
 2.92
3.46
4.56
recommended W.P. at 68 F
psi
100
100
90
90
70
65
60
50
Vacuum Rating
in/HG
28
28
28
28
28
28
28
28
Recom. Min. Bend Radius at 68 F
inch
2
3
4
5
6
8
9
13
Approx.B.P. at 68 F
psi
300
300
270
270
210
195
180
150
Approx. Wt.
lbs./ft.
.21
.30
.38
.48
.71
.97
1.27
2.01
