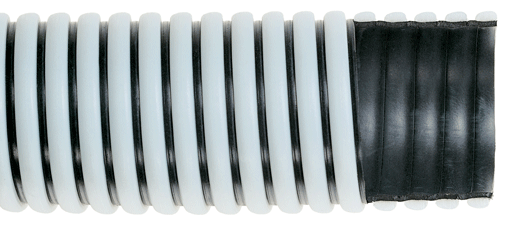

Spiralite 2400

EPDM RUBBER DUCT HOSE

APPEARANCE/CONSTRUCTION:

Black EPDM rubber tube with natural poly-ethylene helix Corrugated wall, smooth interior

BENEFITS:

-Excellent flexibility and surability.

-Good chemical resistance (see chemical resistance chart).

GENERAL APPLICATIONS:

-Air and corrosive atmosphere

-Transfering light chemical and fertilizer solutions.

TEMPERATURE RANGE:

-30F TO +140F

STANDARD LENGTHS:

1-1/2" thru 6" 100ft

2400-00

Nomial size
inch
1-1/2"
2"
2-1/2"
3
4
6"
Appox O.D.
inch
1.83
2.42
3.00
3.59
4.68
6.88
W.P. at 68 F

psi
33
27
25
24
22
20
Recom. Min. Bend Radius at 68 F
inch
3
4
5
6
7
10
Approx. B.P. at 68 F
psi
100
80
75
72
66
60
Approx. Wt.
lbs./ft.
.30
.45
.65
.89
1.27
2.43
