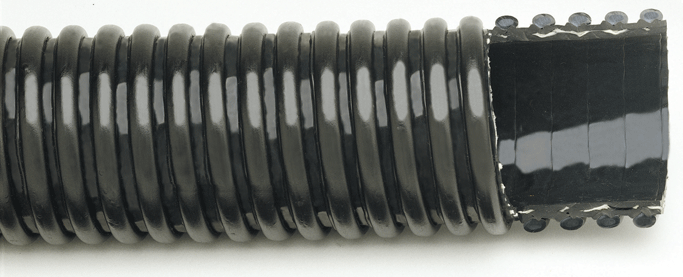

Spiralite 2700

BRAIDED EPDM RUBBER SUCTION / DISCHARGE HOSE

APPEARANCE/CONSTRUCTION:

Black EPDM rubber tube and wall with polyester braid reinforcement; black poly-ethylene helix. Corrugated wall, mooth interior.

BENEFITS:

-Excellent flexibility and surability.

-Higher working pressure than standard EPDM.

-Good chemical resistance (see chemical resistance chart).

GENERAL APPLICATIONS:

-Suction / Discharge service for industry and agriculture.

-Applications requiring the chemical resistance of EPDM rubber at higher working pressure.

TEMPERATURE RANGE:

-30F TO +140F

STANDARD LENGTHS:

2" thru 4" 100ft

2700-00

Nomial size
inch
1-1/2"
2"
3
4
Appox O.D.
inch
2.07
2.66
3.86
4.87
W.P. at 68 F

psi
100
100
85
70
Vacuum Rating at 68 F
in/HG
28
28
28
28
Recom. Min. Bend Radius at 68 F
inch
4
4
6
8
Approx. B.P. at 68 F
psi
300
310
260
210
Approx. Wt.
lbs./ft.
.55
.88
1.48
2.30
