Spiralite 2800

EPDM RUBBER HOSE POLY-ETHYLENE/SOLID WIRE HELIX

APPEARANCE/CONSTRUCTION:

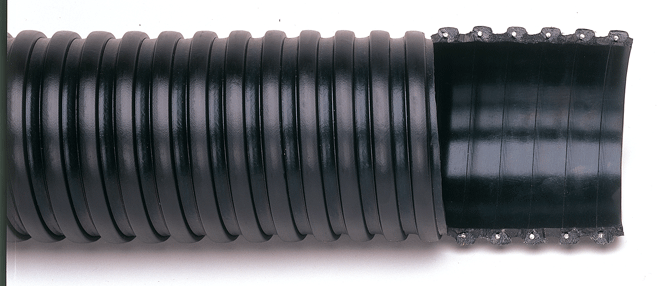

EPDM rubber tube intergrated solid wire with a poly-ethylene helix. Corrugated exterior, smooth interior wall.

BENEFITS:

-Wire helix resist deformation at higher temperatures.

-Good flexibility in higher temperature suction application.

-PVC reinforced resist crushing.

-Polyethylene helix reduces drag.

GENERAL APPLICATIONS:

-Suction application in higher temperature conditions.

-Fly ash suction applications

-Vacuum trucks.

TEMPERATURE RANGE:

-30F TO +220F

STANDARD LENGTHS:

3" thru 6" 100ft

8" 50ft

2800-00

Nomial size
inch
3"
4"
5"
6"
8"
Appox O.D.
inch
3.57
4.69
5.81
6.82
8.56
W.P. at 68 F

psi
30
29
28
28
25
Vacuum Rating at 68 F
in/HG
28
28
28
28
28
Recom. Min. Bend Radius at 68 F
inch
6
6
10
10
15
Approx. B.P. at 68 F
psi
100
90
85
85
75
Approx. Wt.
lbs./ft.
1.45
2.20
3.25
3.91
5.20
