Spiralite 410

PVC CLEAR BRAIDED HOSE

HOSEAPPEARANCE/CONSTRUCTION:

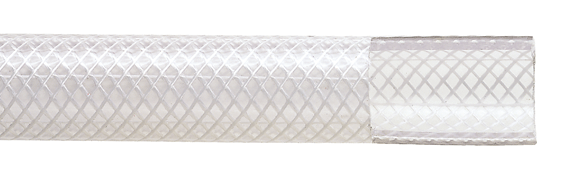

Clear PVC tube with braided reinforcement.

BENEFITS:

-Non-Toxic FDA formula

GENERAL APPLICATIONS:

-Transferrin liquids and air.

-Food processing.

-Approved for use in USDA meat and poultry plants.

TEMPERATURE RANGE:

-10F TO +130F

STANDARD LENGTHS:

1/4' thru 3/4" 300ft

1" thru 2" 100ft

410-00

Nominal Size (inch)
ID
OD
Max Working pressure at 70 F
Design Burst Pressure at 70 F
Approx. WT. lbs/roll
3/16"X2sp
0.19291
0.40551
250
1000
16.4

1/4"X2sp
33/128
15/32
250
1000
19.5
5/16"X2sp
0.31496
0.53543
200
1000
24.7
3/8"X2sp
49/128
5/8
200
800
32
1/2"X2sp
33/64
3/4
200
800
38
5/8"X2sp
81/128
7/8
200
800
45
3/4"X2sp
49/64
1-1/32
150
600
61
1"X2sp
1
1-5/16
125
500
32
1-1/4"X2sp
1-1/4
1-3/4
100
400
63
1-1/2"X2sp
1-1/2
2
75
300
74
2"X2sp
2
2-1/2
75
300
95
