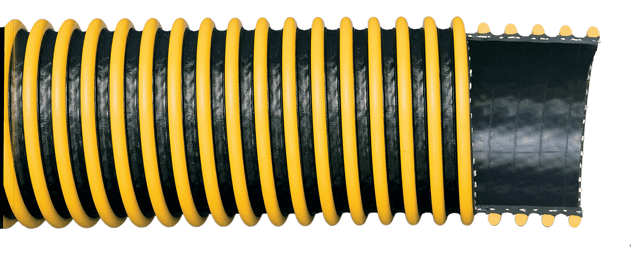

Spiralite 5000

PETROLEUM TANK DROP HOSE WITH STATIC WIRE

HOSEAPPEARANCE/CONSTRUCTION:

-This hose is engineered with a NBR tube & cover fir the pressure, gravity flow or suction movement of gasoline and petroleum products with an aromatic content not to exceed 50%.

-Spiralite 5000 is compounded especially to remain flexible to temperature readings of -30 F.

-Standard hose included static conductive tube and copper static wire.

-Spiralite 5000 is manufactured to offer extra durability. High resistance to gasoline and natural elements such as ozone weather cracking. Light weight for ease of handling.

-See Banding Sleeve 5500 for drop hose

-See W187 for vapor recovery hose.

5000-00

Nomial size I.D.
inch
2"
2-1/2"
3"
4"
Appox O.D.
inch
2.66
3.19
3.76
4.79
W.P. @ 72 F

psi
100
100
65
65
Burst @ 72 F
psi
400
360
260
260
Recom. Min. Bend Radius
inch
4
5
6
8
Approx. Wt.
lbs./ft.
.87
1.13
1.71
2.44
