Spiralite 110

BRAIDED CLEAR PVC CORRUGATED HOSE

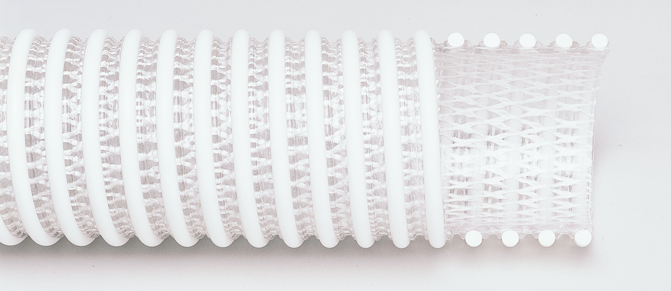

HOSE APPEARANCE/CONSTRUCTION:

Clear PVC with corrugated white helix containing a braided reinforcement.

BENEFITS:

-Clear wall allows easy inspection of material flow

-Smooth inside prevents material blockage.

-Exposed helix, less resistance to dragging.

-Braided wall handles higher pressures.

-Braided construction reduces elongation during applications.

GENERAL APPLICATIONS:

-General suction for water and light chemical solutions

TEMPERATURE RANGE:

-10F TO +130F

STANDARD LENGTHS:

1" thru 6" 100 feet

8" and above 20'25'30'35'40'

6200-00

Nomial size
 inch
1"
 1-1/4" 1-1/2" 2" 3" 4" 6" 8" 10"
Appox O.D.
inch
1.38
1.66
1.89
2.45
3.61
4.73
7.13
 9.30
11.50
recommended W.P. at 68 F
psi
100
100
100
100
100
75
70
50
35
Approx B.P. at 68 F
psi
400
400
280
280
280
200
180
150
105

Vacuum Rating 68 F

in/HG
28
28
28
28
28
28
28
28
28
Recom. Min. Bend Radius at 68 F
inch
3
3
4
5
7
8
12
30
44
Approx. Wt.
lbs./ft.
.27
.33
.36
.54
1.07
1.74
3.81
5.00
7.48
