Spiralite 850

"PAC-FLEX" PVC GRAY FLEXIBLE HOSE

HOSEAPPEARANCE/CONSTRUCTION:

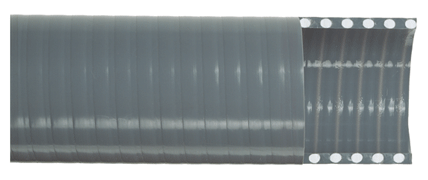

Gray tube with white helix. Smooth cover and interior.

BENEFITS:

-Manufactured to schedule 40 sizing specifications.

-Glues to standard PVC fittings

-Meets of exceeds Western Underground Committee's 3.1 Specification, 3.2 Heat Distortion, 3.3 Impact Resistance, and 3.4 Conduit Stifness.

GENERAL APPLICATIONS:

-Cable conduit

-Plumbing drain (no pressure) lines.

TEMPERATURE RANGE:

-10F TO +130F

STANDARD LENGTHS:

1/2" thru 6" 100ft

850-00

Nomial size
inch
1/2"
3/4"
1"
1-1/4"
1-1/2"
2"
2-1/2"
3"
4"
6"
Appox O.D.
inch
.85
1.06
1.33
1.67
1.67
2.38
2.89
3.50
4.50
6.61
Recom. Min. Bend Radius at 68 F
inch
2
2
3
4
5
6
7
8
11
16
Approx. Wt.
lbs./ft.
.15
123
.32
.40
.50
.70
.95
1.28
1.93
4.42
