Spiralite U125

POLYURETHANE LINED PVC SUCTION HOSE

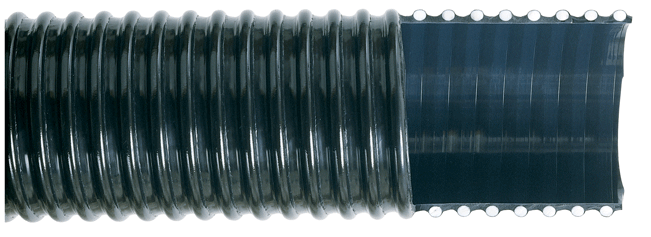

APPEARANCE/CONSTRUCTION:

Black PVC cover with white helix. Corrugated outside, smooth polyurethane tube.

BENEFITS:

-Compounded for outstanding adhesion between wall and lining.

-Exellent abrasion resistance.

GENERAL APPLICATIONS:

-Abrasive material handling.

-Shot blast recovery lines.

-Industrial vaccums

-Pellet & grain transfer

TEMPERATURE RANGE:

-30F TO +130F

STANDARD LENGTHS:

2" thru 4" 100ft

u125-00

Nominal size
inch
1-1/2"
2"
3
4
Appox O.D.
inch
2.07
2.66
3.86
4.87
W.P. at 68 F

psi

100
100
85
70
Vacuum Rating at 68 F
in/HG
28
28
28
28
Recom. Min. Bend Radius at 68 F
inch
4
4
6
8
Approx. B.P. at 68 F
psi
300
310
260
210
Approx. Wt.
lbs./ft.
.55
.88
1.48
2.30
