Spiralite W145

ALL-CLEAR PVC CORRUGATED FOOD GRADE SUCTION HOSE WITH STATIC WIRE

HOSE APPEARANCE/CONSTRUCTION:

Clear PVC tube and helix. Corrugated wall,smooth interior. Static-conductive wire.

BENEFITS:

-Lightweight and highly flexible.

-Non-toxic PVC conforms to FDA standards.

-All clear construction allows easy material inspection.

GENERAL APPLICATIONS:

-Pneumatic conveying powder, pellets and granular materials.

TEMPERATURE RANGE:

-10F TO +130F

STANDARD LENGTHS:

1-1/4" thru 6" 100ft

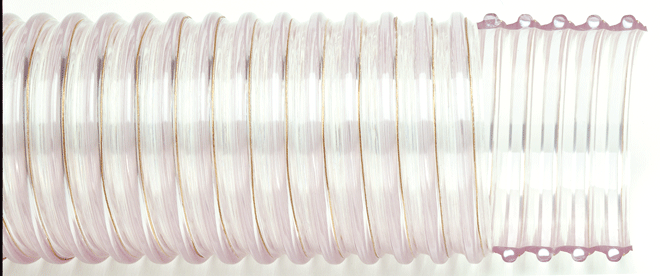

w145-00

Nominal size
inch
1-1/4"
1-1/2"
45mm
2"
57mm
2-1/2"
3"
4"
5"
6"
Appox O.D.
inch
1.61
1.82
2.13
2.37
2.67
3.01
3.62
4.54
5.73
6.98
W.P. at 68 F

psi
50
50
40
40
40
40
35
35
30
35
Vacuum Rating
in/HG
28
28
28
28
28
28
28
28
24
28
Recom. Min. Bend Radius at 68 F
inch
3
3
4
4
4
5
6
8
11
15
Approx. B.P. at 68 F
psi
150
150
120
120
120
120
105
105
90
105
Approx. Wt.
lbs./ft.
.32
.38
.49
.58
.64
.79
1.06
1.68
2.34
4.13
