Spiralite W185

ALL-CLEAR PVC CORRUGATED FOOD GRADE DUCT HOSE WITH STATIC WIRE

HOSEAPPEARANCE/CONSTRUCTION:

Clear PVC tube and helix. Corrugated wall,smooth interior. Static-conductive wire.

BENEFITS:

-Lightweight and highly flexible.

-Non-toxic PVC conforms to FDA standards.

-All clear construction allows easy material inspection.

GENERAL APPLICATIONS:

-Low-volume conveying of powder and pellets.

TEMPERATURE RANGE:

-10F TO +130F

STANDARD LENGTHS:

1-1/2" thru 6" 100ft

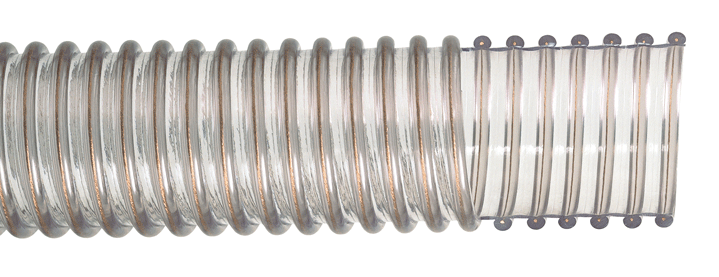

w185-00

Nomial size
inch
1-1/2"
39mm
45mm
2"
57mm
2-1/2"
3"
4"
5"
6"
Appox O.D.
inch
1.87
1.91
2.20
2.44
2.69
2.98
3.53
4.58
5.62
6.67
Vacuum Rating
in/HG
28
28
28
28
28
28
28
28
28
28
Recom. Min. Bend Radius at 68 F
inch
2
2
2
2
3
3
3
4
4
5
Approx. Wt.
lbs./ft.
.36
.36
.45
.58
.53
.61
.85
1.13
1.55
1.88
