Spiralite W187

CORRUGATED POLYURETHANE VAPOR RECOVERY HOSE WITH STATIC WIRE

HOSE APPEARANCE/CONSTRUCTION:

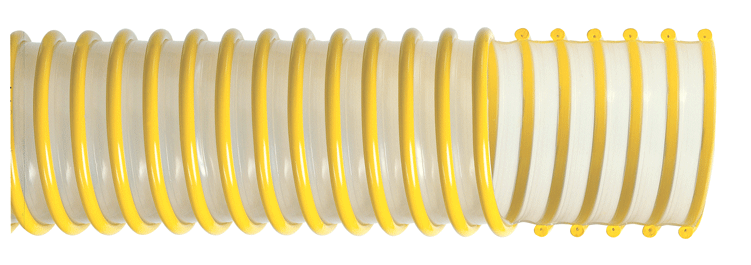

Clear Polyurethane tube with Yellow PVC helix and static wire.

BENEFITS:

-Lightweight and highly flexible.

-Resistant to chemical vapors and light abrasives

-Static conductive wire.

GENERAL APPLICATIONS:

-Vapor recovery for use with Spiralite 5000

-Ducting dust and light abrasives.

TEMPERATURE RANGE:

-30F TO +140F

STANDARD LENGTHS:

1-1/2" thru 6" 100ft

8" 50ft

w187-00

Nominal size
inch
1-1/2"
2"
2-1/2"
3"
4"
5"
6"
8"
Appox O.D.
inch
1.88
2.43
2.96
3.54
4.56
5.51
6.52
8.75
Recom. Min. Bend Radius at 68 F
inch
1.5
2
2.5
3
4
5
6
10
Approx. Wt.
lbs./ft.
.36
.48
.61
.69
.92
1.13
1.24
2.42
